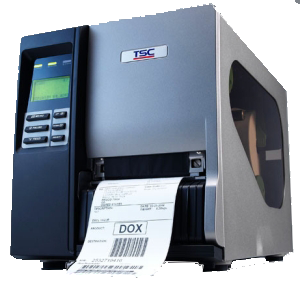

INDUSTRIAL DESKTOP LABEL / BARCODE PRINTER
TTP-2410M Pro Series
Durable High-Speed Performance
The new high speed Pro Series features many improvements designed to increase the functionality and durability of TSC’s flagship industrial printer line.
Pro Series enhancements
The TTP-2410M Pro Series is based on the proven TTP-2410M platform with many significant changes. The new Pro Series features a separate die-cast aluminium base plate and backplane that includes a metal media supply spindle and sturdy two roller damper. This new design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Other enhancements include a new motor mount for quieter printing, a gap sensor lock to keep the label sensor from shifting, and a new anti-static ribbon brush. Finally, TSC has added an optional USB Host option for applications that require the use of either a USB scanner or keyboard.
Superb resolution, great warranty
There are three models available with the TTP-2410M Pro Series. The TTP-2410M Pro prints at 203 dpi at speeds up to twelve inches per second, TTP-346M Pro offers 300-dpi resolution at speeds up to eight inches per second, and the TTP-644M Pro features 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.
Model
|
Printing Method
|
Resolution
|
Max. Print Width
|
Max. Print Length
|
Max. Print Speed
|
TTP-2410M Pro
|
Thermal Transfer
|
203 dpi
|
4.09"
|
160"
|
12 ips
|
TTP-346M Pro
|
Thermal Transfer
|
300 dpi
|
4.09"
|
73"
|
8 ips
|
TTP-644M Pro
|
Thermal Transfer
|
600 dpi
|
4.09"
|
40"
|
4 ips
|
TTP-246M Pro
|
Thermal Transfer
|
203 dpi
|
4.25"
|
90"
|
8 ips
|
TTP-344M Pro
|
Thermal Transfer
|
300 dpi
|
4.09"
|
40"
|
6 ips
|
TTP-2410M Pro Series Brochure
Web updated July 2015
-
